Overview

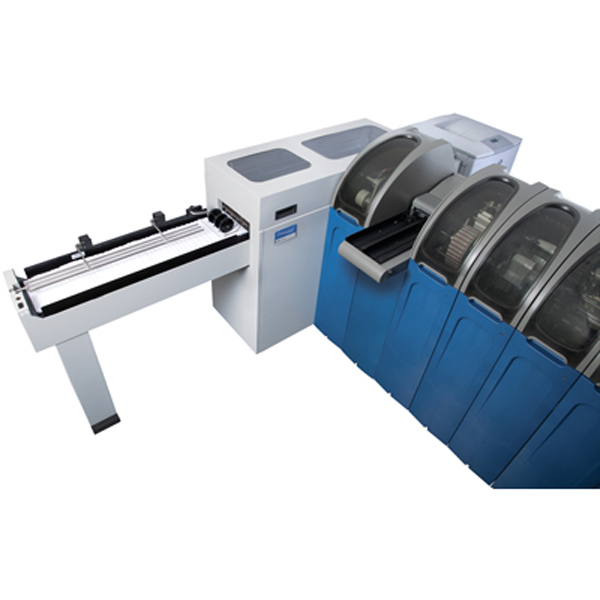

The Datacard MXD Lite card delivery system provides efficiency, reliability and data integrity at an affordable price. It integrates with the Datacard MX6000 or MX2000 card issuance system to print personalized messages that strengthen loyalty, affix payment cards and fold carriers in one seamless inline process.
- Leverage a market-proven platform.
- Process up to 1,200 forms per hour.
- Affix up to two payment cards per form.
Features
Features Inline efficiency
Print personalized forms (8.5″ x 11″ or A4), then affix one or two cards and fold carriers without slowing the productivity of your payment card issuance system.
Superior card and form integrity
Multiple verifications help ensure an exact match from card to form. The system’s integrated architecture drives payment card issuance and delivery with a single data stream, which simplifies operations, automates job handling tasks and gives you the option to generate activity reports.
Proven platform
Based on a proven Datacard® design, the MXD Lite card delivery system offers a very reliable platform for high-quality card delivery.
Inline laser printing
Featuring two laser printer options, the MXD Lite system optimizes throughput with print speeds up to 50 pages per minute and resolution up to 600 dpi.
High-quality forms
Expect sharper, cleaner results with a proprietary knife design in the folder. The sticker also uses transparent, double-sided, pressure-sensitive tape that helps prevent forms from tearing.
Versatile design
Select the standard configuration to process up to 500 forms per hour, or choose the optional buffer to process up to 1,200 forms per hour for Z-fold or standard C-fold, single-card applications.
High-capacity output stacking
Output stackers enable operators to perform many other tasks before clearing, which can lead to significantly higher productivity and operational efficiency.
Inline envelope insertion
Add the optional Datacard MXi envelope insertion system to create up to 1,200 mail-ready pieces per hour.
Specifications
Physical dimensions
- Without buffer: 50.0 in. H x 34.7 in. W x 83.0 in. L (88.1 cm x 86.4 cm x 206.8 cm)
- With buffer: 50.0 in. H x 34.7 in. W x 94.0 in. L (88.1 cm x 86.4 cm x 237.7 cm)
Weight
- Without buffer: 743.0 lbs (337.0 kg)
- With buffer: 776.0 lbs (352.0 kg)
Speed:
- Up to 1,200 forms per hour (with buffer)
- Up to 500 forms per hour (without buffer)
- Based on simplex printing with one card per form
Templates:Microsoft®Word
Folding configurations:
Three software-selectable folding configurations:
- C-fold: standard (bottom-in)
- Z-fold: address bottom (top-in)
- Z-fold: address bottom (top-forward)
Card affixing:
- Transparent,double-sided,pressure-sensitive tape
- – Cards can be affixed,removed and easily re-affixed
- Affix up to two cards per form (middle panel only)
Laser printers:
- Hewlett Packard®
- Up to 40 ppm
- 39.0 in. W x 29.5 in. D x 29.5 in. H (99.1 cm x 74.9 cm x 74.9 cm)
- 221.4 lbs (100.4 kg)
- 600 dpi
Paper Tray Capacity:
- Input: 3,000 sheets total
- Tray 2: 500 sheets
- Tray 3: 500 sheets
- Tray 4: 2,000 sheets
MXDForm Stacker:
Dimensions:7.0″ W x 54.0″ L (17.8 cm x 137.16 cm)
Weight:91.0 lbs (41.3 kg
