Features

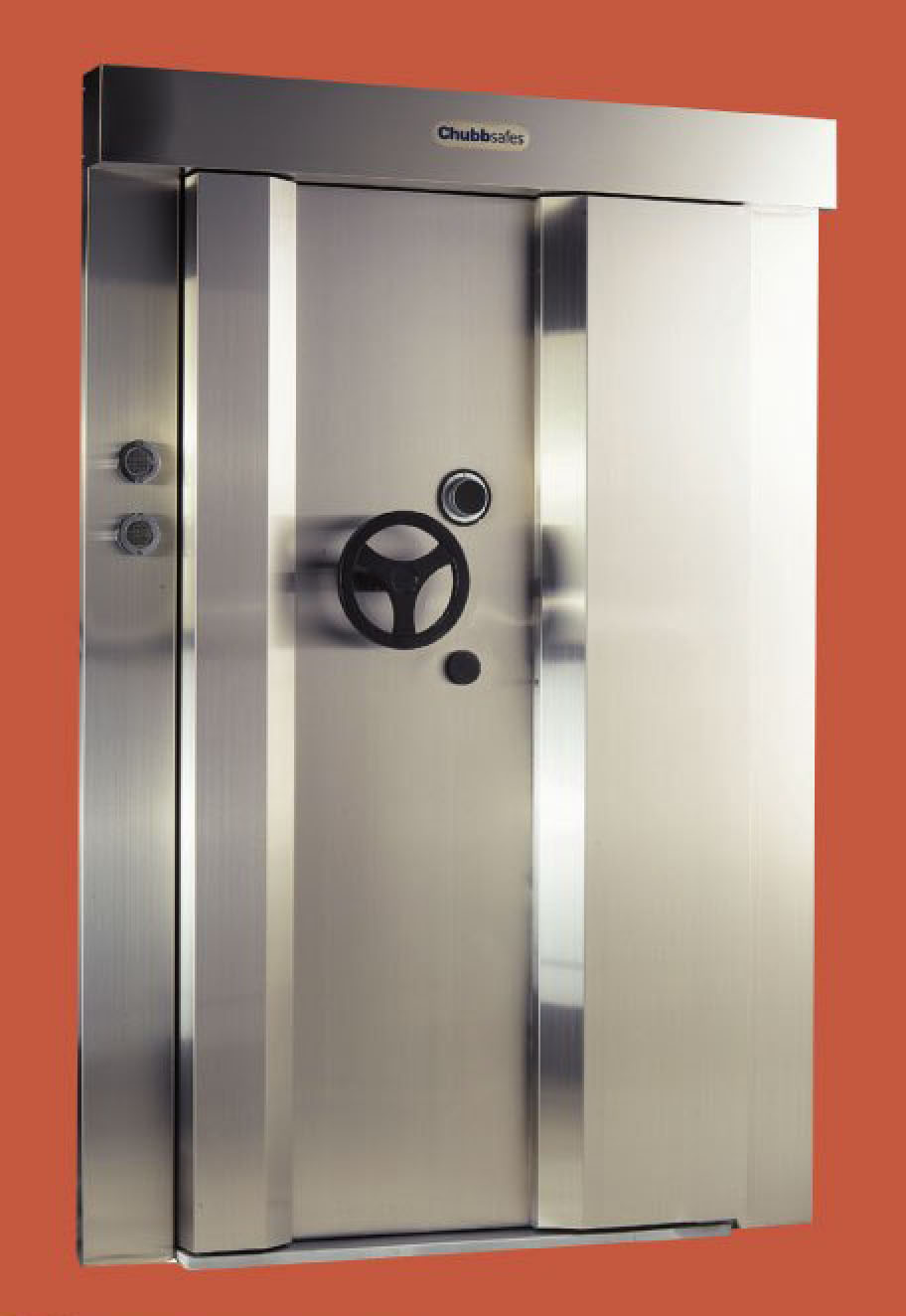

Door – Solid door slab with a protective thickness of 114mm (4 1/2”) forms the basis of the door, which has an overall thickness of 251mm. Filled with a specially formulated F8O barrier material reinforced with steel fibers provides resistant to high speed drilling,
oxy-acetylene cuttings and jack attacks.
Boltwork – Secured by 7 heavy cylindrical through bolts, 2 top bolts and 2 bottom bolts securing all 4 sides of the door. The horizontal through bolts extend throughout the full width of the door. Each bolt has a diameter of 38mm.
Locking – Secured with a single high security 4-wheel Keyless Combination Lock c/w blinder shiled capable of 100,000,000 change codes and a 11-levers double bitted Key lock with detachable key bit as standard. Both Locks operated independently of each other.
Relocker – Glass Relockers protected both the Keyless Combination Lock and Key Lock in the door. Any forced attemps to dislodge the locks would activate a total of 7 indenpending relockers. This restricts the movement of the internal boltwork system. Relockers are further protected by Chubbsafes patented Torch and Drill Resistant (TDR) material.
Frame – The ”wrapped around the wall” door frame is fabricated from steel sections, bent to from a single structure. Vestibule side frame at full height of the door are attached to the frame and grip the inside of the wall. This design provides stronger resistance against attacks to the door.
Emergency Ventilator – An emergency ventilator is integrated into the door frame to provide fresh air, allowing two way conversation and to supply food or water to anyone trapped in the vault room.
Lighting Control – A relay micro switch is fitted to the door to control the electric lighting in the room and to ensure that when the door is closed,all lighting within the room is switched off.
Alarm Micro Switch – A relay micro switch is fitted to the door for possible connection to the main intruder alarm system as an additional protection.
