Overview

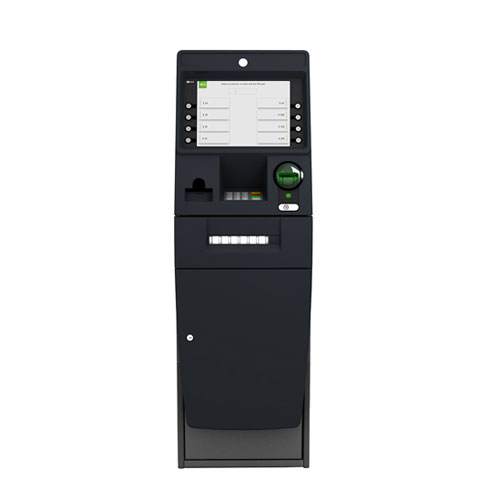

Flexible placement options to connect your customer to their cash. The NCR SelfServ 22e provides the perfect cash dispense solution for any indoor location. Whether in bank branches or in off-premise locations, the intuitively designed NCR SelfServ 22e will attract customers and handle even the highest transaction volumes. At the same time, a compact footprint provides maximum placement flexibility where floor space is at a premium.
Redefined availability
Real availability is about delivering the transactions that consumers want, where and when they need them. With its compact footprint and reliable dispenser technology, NCR SelfServ 22e can be deployed in more locations where space is at a premium or queues are long— successfully serving more customers.
Informed manageability
NCR SelfServ 22e provides best-in-class data for network management with NCR’s next -generation management system APTRATM Vision. Clear visibility to configurations, software versions and the activity levels of each module results in more accurate, timely management decisions and operational excellence.
Committed responsibility
Low-energy LED lighting, fixed length receipts and a low-power, high-performance core processor are just some of the ways we’ve reduced the carbon footprint of NCR SelfServ 22e, making it a valuable asset in achieving the environmental goals for your business.
Intuitive usability
NCR SelfServ 22e has been designed to ensure that consumers and branch staff become experts after their very first use, resulting in better consumer satisfaction, operational efficiency and staff productivity.
For more information, visit www.ncr.com,
or email financial@ncr.com.
Intrinsic security
Incorporating NCR’s unique protected USB architecture, a range of anti-fraud and physical security solutions—NCR SelfServ 22e reduces fraud risk and maintains the integrity of your self-service channel for you and your customers.
Features
Key Features
- Fully recessed PCI compliant Encrypting PIN Pad
- Intuitive low-power media entry and exit indicators
- High-capacity cash dispenser self-service solutions
- 15″ LCD touchscreen
- Card reader with built-in fraud prevention years
- Range of Intel Cores
Specifications
Height:
- 55.6″ (1,411mm)
Width:
- 17.7″ (450mm)
Depth:
- 30.8″ (783.5mm) CEN L safe
- 30.1″ (763.5mm) UL 291 safe
Consumer Interface
- Display – Choice of 15″ LCD color with 8 FDKs or 15″ LCD touchscreen, XGA with autoscaling, optional privacy filter, sunlight readable displays
- Keyboard – Full recessed EPP (PCI compliant), • polycarbonate or stainless steel Card Reader – Smart Dip, IMCRW with Smart option, CROPF and/or System Escape, HiCo
- Integrated Media Entry and Exit Indicators • (MEEI)
- Audio – Optional high quality public audio and/or sound jack with volume control
- Barcode Reader – 2D Barcode supports both 1D and 2D documents
Dispenser
- 2 or 4 cassettes, bunch presenter, retract and purge capability
Printers
- Receipt Printer – 80mm 203dpi graphics thermal printer
- Journal Printer – 80mm 203dpi graphics thermal printer
Security
- USB Protection and Parts Validation, Enhanced Card Drive. Options – Fraudulent Device Inhibitor (FDI), Solidcore for APTRA, Camera enabled facility
- Safes – Business Hours, UL 291, CEN L
Communication Options
- Dial-up, TCP/IP, Leased line, Wireless communications-enabled, Integrated Ethernet
Environmental
- Temperature – 50°F to 104°F (10°C to 40°C)
- Humidity – 20% to 80%
- Acoustics – Sound power 65db(A) idle, 68db(A) operating
Operating platform
- 1.6GHz N270 processor
- XFS version 5.01.00
- DVD disc drives
Software
- Windows® XP Pro
- XFS 5.01 or later
- NCR APTRA software suite
