Overview
A small footprint that delivers outstanding accessibility, efficiency and versatility

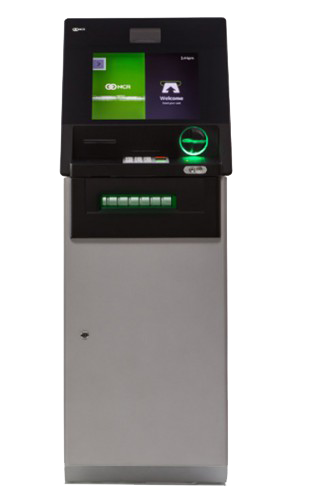

The NCR SelfServ 25 is an exterior through-the-wall and vestibule ATM with a small footprint and complete hole-in-the-wall compatibility, ideal for locations where space is at a premium. Offering cash dispense and a range of revenue-generating services, the NCR SelfServ 25 will deliver your brand to the broadest possible audience in the broadest possible range of locations.
Redefined availability
Real availability is about delivering the transactions that consumers want, where and when they need them. With new “self-healing” technology, easy-to-use service lead-through application, and front, rear and side service access, NCR SelfServ redefines availability.
Informed manageability
NCR SelfServ provides best-in-class data for network management. Clear visibility to configurations, software versions and the activity levels of each module results in more accurate, timely management decisions and operational excellence.
Committed responsibility
Low-energy LED lighting, 25% less cabling and reduced requirements for on-site service visits are just some of the ways we’ve lowered the
carbon footprint of each ATM. NCR SelfServ will be a valuable asset in achieving the environmental goals for your business.
Intuitive usability
NCR SelfServ enables consumers, cash-in-transit companies, branch staff and service engineers to become experts after the very first use, resulting in better operational efficiency, staff utilisation and consumer satisfaction.
Intrinsic security
Incorporating a unique protected USB architecture and a range of antifraud and physical security solutions, NCR SelfServ reduces fraud
risk and maintains the integrity of your self-service channel for you and your customers.
Key Features
• Provides a broad range of services such as bill payment, funds transfer, mobile phone top-up, couponing and vouchers and mini-statements
• PCI compliant Encrypting PIN Pad self-service solutions.
• High capacity cash dispenser
• 12.1″ and 15″ LCD touchscreen
• Card reader with built-in fraud prevention
Specifications
Height:
- 59.0″ (1,498mm)
Width:
- 27.7″ (704mm)
Depth:
- 51.2″ (1,301mm) standard sleeve
- 46.7″ (1,187mm) short sleeve
Weight:
- 1,308lbs (593kg) CEN L safe
- 1,568lbs (711kg) CEN III/IV safe
Consumer Interface
- Display – Choice of 12.1″ or 15″ LCD, FDK or touchscreen, optional privacy filter, sunlight readable displays
- Keyboard – EPP (PCI compliant), polycarbonate or stainless steel
- Card Reader – Smart Dip, IMCRW with Smart option, HiCo
- Integrated Media Entry and Exit Indicators (MEEI)
- Audio – Optional high quality public audio and/or sound jack with volume control
- Advert Panel – Standard or enhanced with backlight
- Barcode Reader – 2D Barcode supports both 1D and 2D documents
Dispenser
- 2-4 cassettes, bunch presenter, retract and purge capability
Printers
- Receipt Printer – 80mm 203dpi graphics thermal printer. Options – retract and capture, dual color, dual roll and/or 2ST (two-sided thermal printing)
- Journal Printer – 80mm 203dpi graphics thermal printer
Security
- USB Protection and Parts Validation. Options – Fraudulent Device Inhibitor, Enhanced Card Drive, Intelligent Fraud Detection (IMCRW only), Ink-staining, Solidcore Suite for APTRATM, Camera NTSC, PAL or third party
- Uninterruptible Power Supply (UPS)
- Safes – CEN L, CEN 1, CEN III, CEN IV
Servicing
- 10.4″ (264mm) LCD Graphical Operator Panel (rear load only)
- Front, rear and side service
Software
- Windows® XP Pro
- XFS 4.05 or later
- APTRA software suite
Additional features
- Biometrics ready
- Contactless ready
