Overview

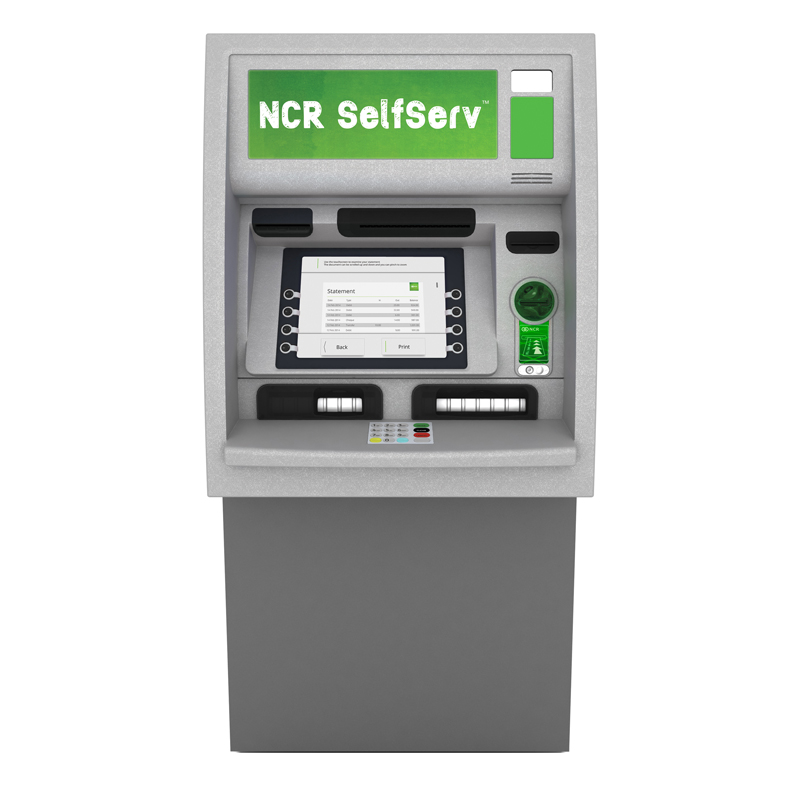

The NCR SelfServ™ 32 is a full function freestanding inside ATM. This makes it ideally suited for any inside location either within branch or off-premise.
Designed with medium to high transaction usage in mind, the NCR SelfServ 32 dispenses cash as well as accepting cash and check deposits and offers a broad range of other services, such as bill payment, funds transfer, mobile phone top-up and mini-statements.
The perfect inside ATM to complement other branch offerings, it gives you the widest range of upgrade options available, including bulk and single cash and check deposit, check imaging and truncation as well as cash recycling. It can even be extended to offer the largest cash dispense capacity on the market.
Key Features
Provides a broad range of services such as bill payment, funds transfer, mobile phone top-up, couponing and vouchers and mini-statements
PCI-compliant Encrypting PIN Pad (EPP)
Cash acceptor with flexible deposit modules and recycling options
12.1″ and 15″ LCD touchscreen
Card reader with built-in fraud prevention
Technical Specification
PRODUCT DIMENSIONS
HEIGHT 62.0″ (1,575mm)
WIDTH 30.9″ (784mm)
DEPTH
front access 40.2″ (1,020mm)
rear access 42.6″ (1,082mm)
WEIGHT
CEN L safe 2,227lbs (1,010kg)
CEN III/IV safe 2,546lbs (1,155kg)
Consumer Interface
Display – Choice of 12.1″ or 15″ LCD, FDK or touchscreen, optional privacy filter, sunlight readable displays
Keyboard – EPP (PCI compliant), polycarbonate or stainless steel. Optional Alphanumeric keyboard
Card Reader – Smart Dip, IMCRW with Smart option, HiCo
Integrated Media Entry and Exit Indicators (MEEI)
Audio – Optional high quality public audio and/or sound jack with volume control
Advert panel – Standard or enhanced with backlight
Barcode Reader – 2D Barcode supports both 1D and 2D documents
Dispenser
2-4 cassettes, bunch presenter, retract and purge capability
Dual dispense 2×4 (8 cassettes)
Deposit Technology
Intelligent Cash Deposit and Recycling. Options – Choice of Cash Acceptors and Recycler. Accepts and validates up to 200 new notes per transaction*
Supports multi-currency deposit, remote download of templates
Scalable Deposit Module – 1 slot for cash and check deposit. Can handle check and cash as a separate transaction but also mixed media (SW dependent)
Intelligent Check Deposit – Scalable check deposit (up to 30 checks in a single bunch)
Envelope Depository/Dispenser
Coin Processing – Optional coin dispense
Printers
Receipt Printer – 80mm 203dpi graphics thermal printer. Options – retract and capture, dual color, dual roll and/or 2ST (two-sided thermal printing)
Journal Printer – 80mm 203dpi graphics thermal printer
Statement Printer – 80 column thermal printer with document capture and 2ST
Passbook Printer – Page-turning passbook for horizontally stitched books
Security
USB Protection and Parts Validation. Options – Fraudulent Device Inhibitor, Enhanced Card Drive, Intelligent Fraud Detection (IMCRW only), Ink-staining, Solidcore Suite for APTRATM, Camera NTSC, PAL or third party
Uninterruptible Power Supply (UPS)
Safes – CEN L, CEN 1, CEN III, CEN IV
Servicing
10.4″ (264mm) LCD Graphical Operator Panel (rear load only)
Front, rear and side service
Software
XFS 4.05 or later
APTRA software suite
Additional Features
Biometrics ready
Contactless ready
* Dependent upon currency, note quality and deposit module used
