Overview

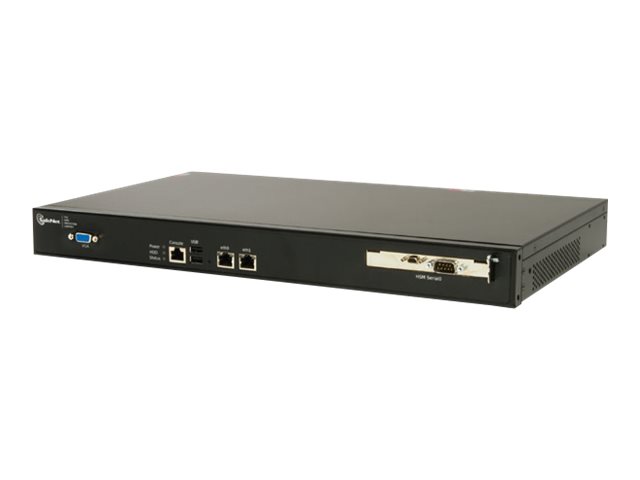

ProtectServer External 2 is a security hardened network crypto server designed to protect cryptographic keys against compromise, while providing encryption, signing and authentication services to security sensitive applications.

Benefits

Security

• Physical tamper protection
• True Random Number
• Smartcard backup of key

Performance

• Dual LAN
• Up to 1500 RSA signings/sec
• WLD (Work Load Distribution)
• Multi-threaded APIs
• Easy Management

Infield upgrade

• GUI HSM interface
• Remote HSM Management
• Extensive API support

Available in 25, 220, and 1500 performance models.

Technical Specifications

Operating Systems

Windows and Linux
Cryptographic APIs

PKCS#11, CAPI/CNG, JCA/JCE, JCProv, OpenSSL

Cryptographic Processing

Asymmetric Algorithms : RSA(up to 4096 bit), DSA, ECDSA Diffie Hellman (DH), ECC Brainpool Curves (named and user- defined), plus others

Symmetric Algorithms : AES, DES, 3DES, CAST-128,RC2, RC4, SEED, ARIA, plus others

: Modes supported include ECB, CBC, OFB64, CFB-8 (BCF) plus others

Hashing Algorithms : MD5, SHA-1, SHA-256, SHA-384, SHA-512, MD2, RIPEMD128, RIPEMD160, DES MDC-2 PAD1

Message Authentication Codes : SHA-1, SHA-256, SHA-384, SHA-512, MD2, RIPEMD128, RIPEMD160, DES MDC-2 PAD1, SSL3 MD5 MAC, AES MAC, CAST-128 MAC, DES MAC, DES3 MAC, DES3 Retail CFB MAC, DES30x9.19 MAC, IDEA MAC, RC-2 MAC, SEED MAC, ARIA MAC, VISA CVV

Physical Characteristics

Dimensions : 437 mm(W) x 270 mm (D) x 44 mm (H)

Power Consumption : 220/110 Volts Switchable

Temperature : Operating 0°C – 40°C

Security Certifications

FIPS 140-2 Level 3**
**Under evaluation

Safety and Environmental Compliance

UL, CSA, CE
FCC, KC Mark, VCCI, CE
RoHS, WEEE
