Overview

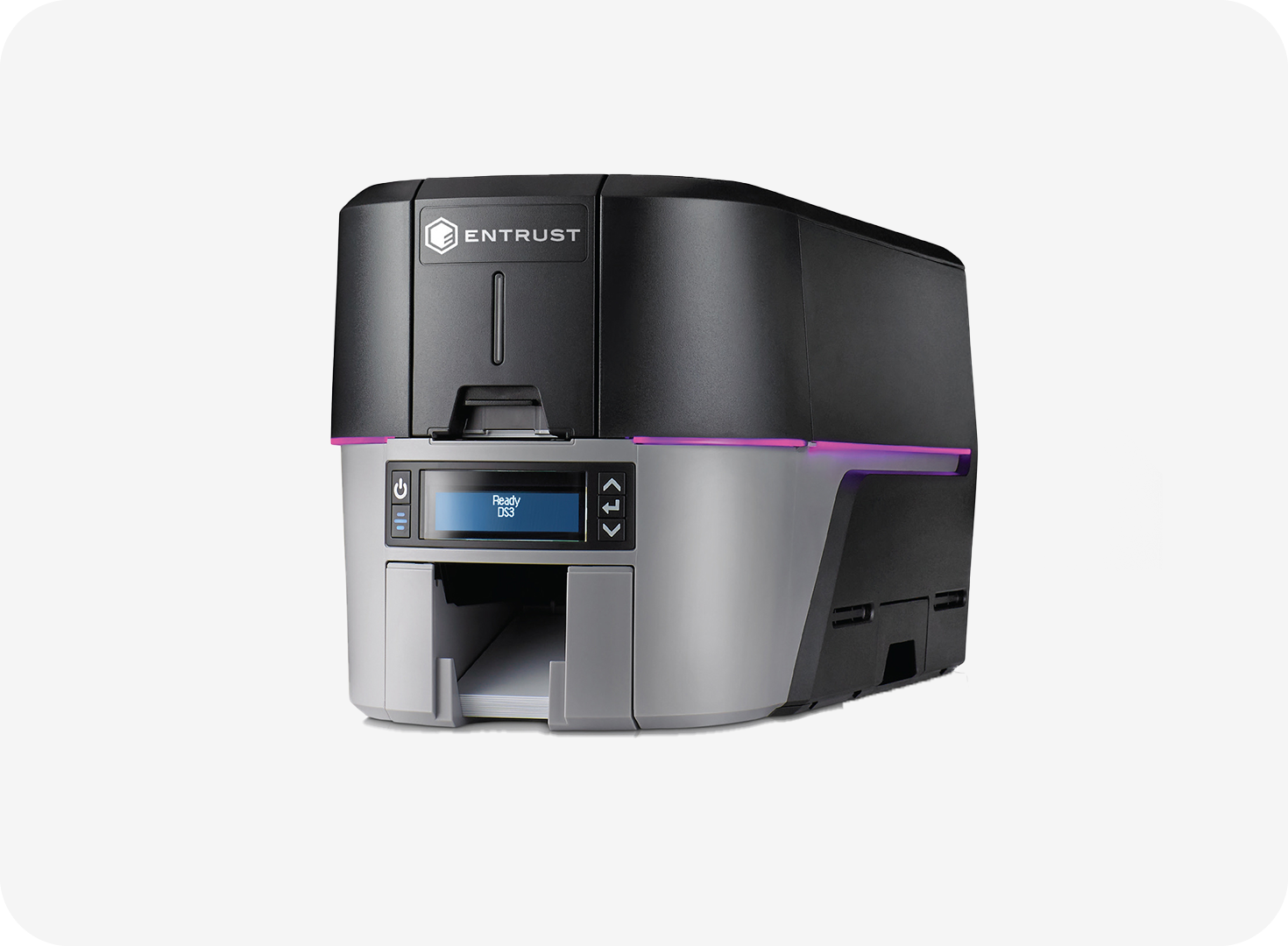

Sigma: The next generation of direct-to-card printing : Entrust Sigma ID Card Printers are specifically designed for today’s cloud environments and give you the ability to easily issue secure identities.

• Simple: From unboxing to issuing ID cards and mobile flash passes to managing your printer, we made sure Sigma was the most user-friendly ID card issuance solution in the world.
• Secure: Our industry-leading issuance security architecture will help protect your cards and your customers’ data during each step of the issuance process.
• Smart: Forward-thinking technology and scalability allow you to expand your ID card program as your needs evolve.

Features

The world’s most user-friendly ID card printer

• Intuitive printer dashboard lets you see printer status, order supplies, check cleaning status, update firmware, or contact help – all from your mobile device.
• Seamless self-service lets you access how-to videos and other helpful resources by simply scanning QR code on the LCD display.
• Variable LED light ring lets you incorporate brand colors or other customization into your ambient environment.
• Pre-loaded ribbon cassettes make switching ribbons easy.

Unmatched security.

• Secure boot protects system from malware or virus on boot-up.
• Trusted Platform Module (TPM) manages the printer’s own TLS/SSL certificates and keys.
• Connection and data sent between software and printer is encrypted.
• Customer data is encrypted and is not stored in the printer after printing is complete
• Luster printing and other security features added to cards protect from tampering and counterfeiting.

Flexibility and scalability built for the future

• Issuance capabilities include physical cards and digital mobile flash pass.
• Choose on-premises or cloud-hosted deployment
• Expand your ID program as your needs change by adding smart card capabilities, WiFi connectivity, and more
• Print anytime, anywhere with your mobile device (iOS, Android, Windows)

Specifications

Standard Features & Supplies

Print technology

• Dye sublimation

Print capabilities

• Single or dual-sided

Print resolution

• 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Print speed

• Single-sided color ribbon: up to 250 cards per hour (cph)
• Double-sided color ribbon: up to 180 cards per hour (cph)

Card capacity

• Input hopper – 125 cards
• Output hopper – 25 cards

Card sizes

• Thickness: 0.010 inches to 0.040 inches (0.25mm – 1.016mm)
• Dimension: ID-1, CR-79, CR-80

Operating environment

• Temperature: 60°F to 95°F (15°C to 35°C)
• Humidity: 20-80% RH – non condensing

Physical dimensions

• L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

• 12.1 lbs (5.49 kg); varies with options

Connectivity

• • USB and Ethernet

Optional Features & Supplies

Magnetic stripe encoding

• ISO 7811 three-track support (high- and low-coercivity) JIS Type II single-track option

WiFi

• WiFi types: 802.11g/n
• Authentication modes: None, WPA2 Personal
• Dual-band 2.4GHz & 5GHz

Smart card encoding

• Contact smart card encoding: ISO 7816 T=0 (T=1), Class A 5V (3V and 1.8V)
• Contactless smart card encoding: ISO 14443 A/B, ISO 15693, MIFARE, MIFARE DESFire EV1/EV2, HID Prox, iClass, iClass SE, iClass Seos, Felica

Color ribbons*

• YMCKT 250/500 images
• ymcKT 650 images
• YMCKT-KT 350 images
• KT 1000 images
• KTT 750 images
• YMCKF-KT 300 images
• YMCKL-KT 300 images
• ST-KT 500 images
• GT-KT 500 images
• YMCK & YMCK-KK 500 images

Warranties

• 24-months standard depot warranty
